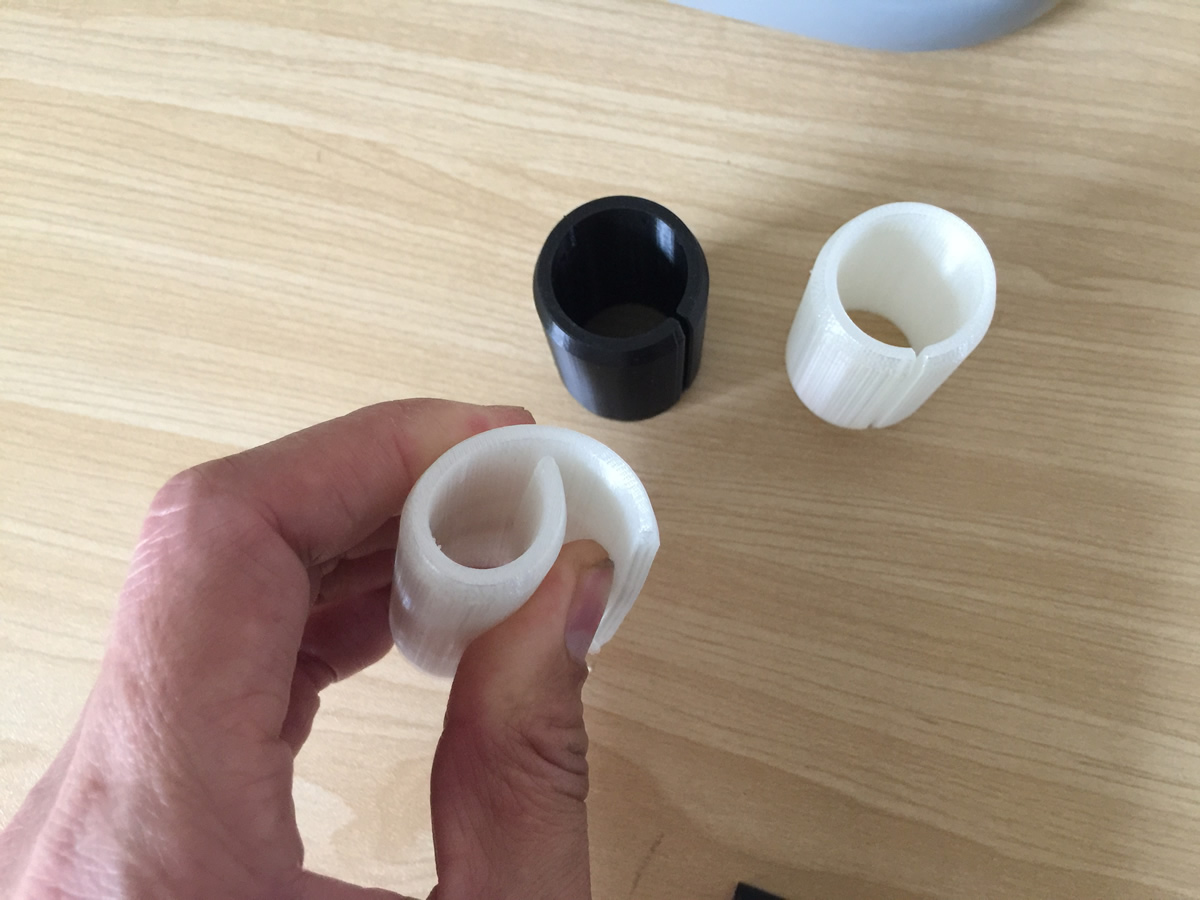

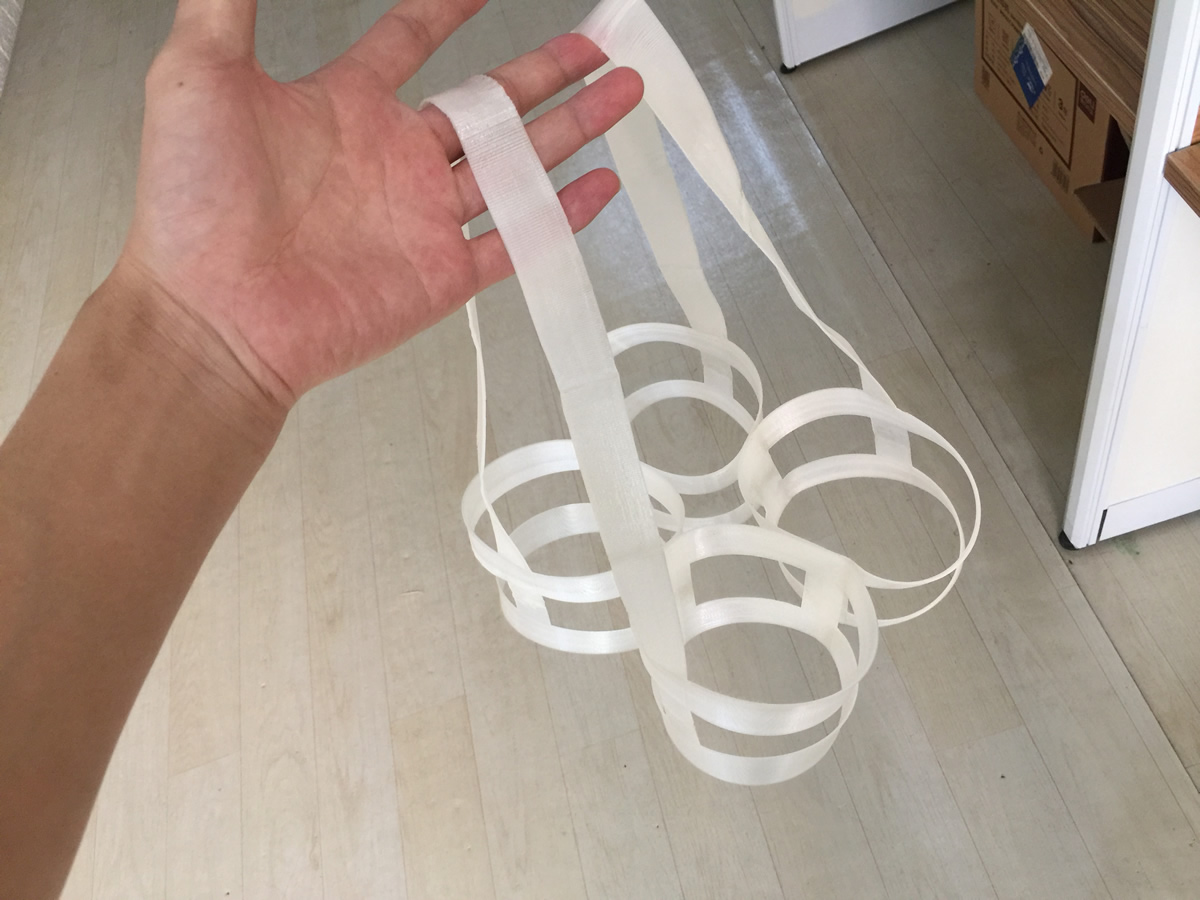

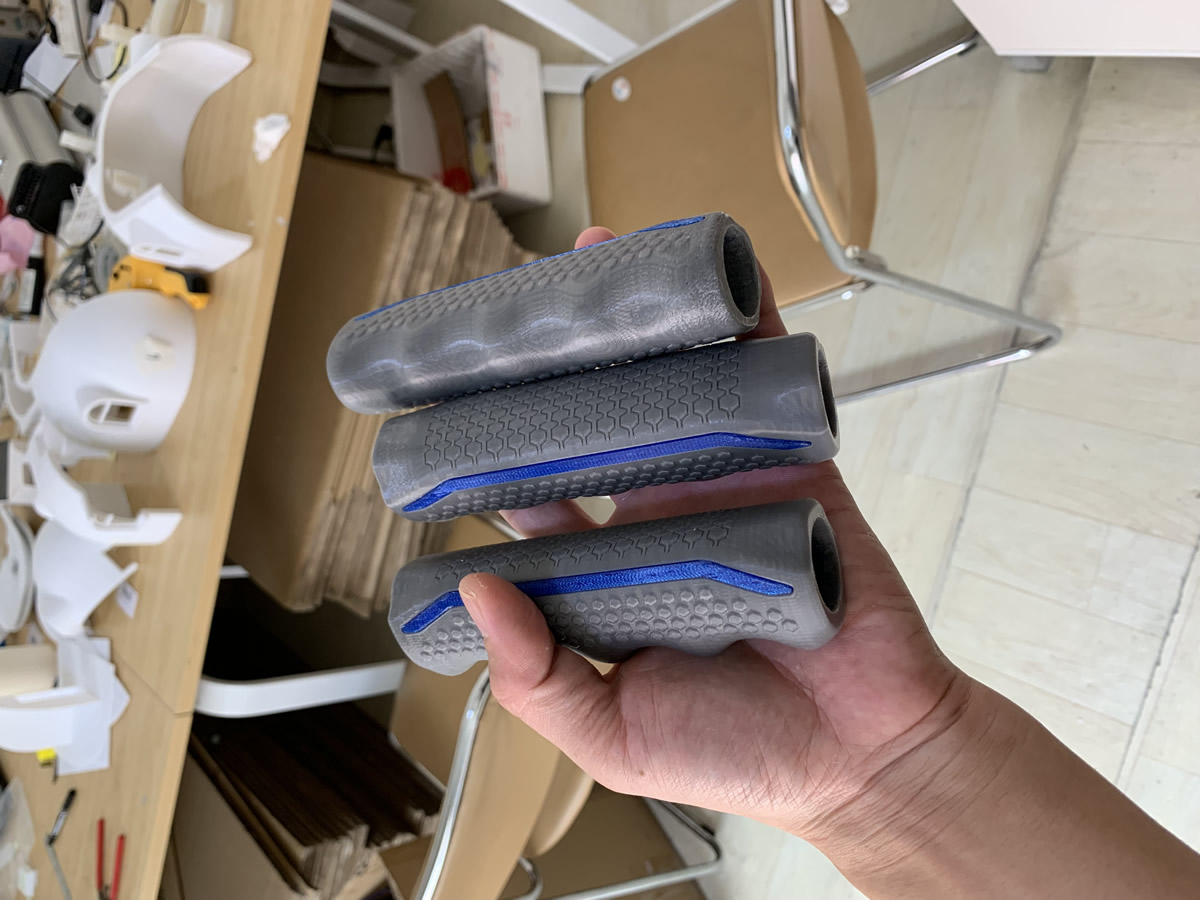

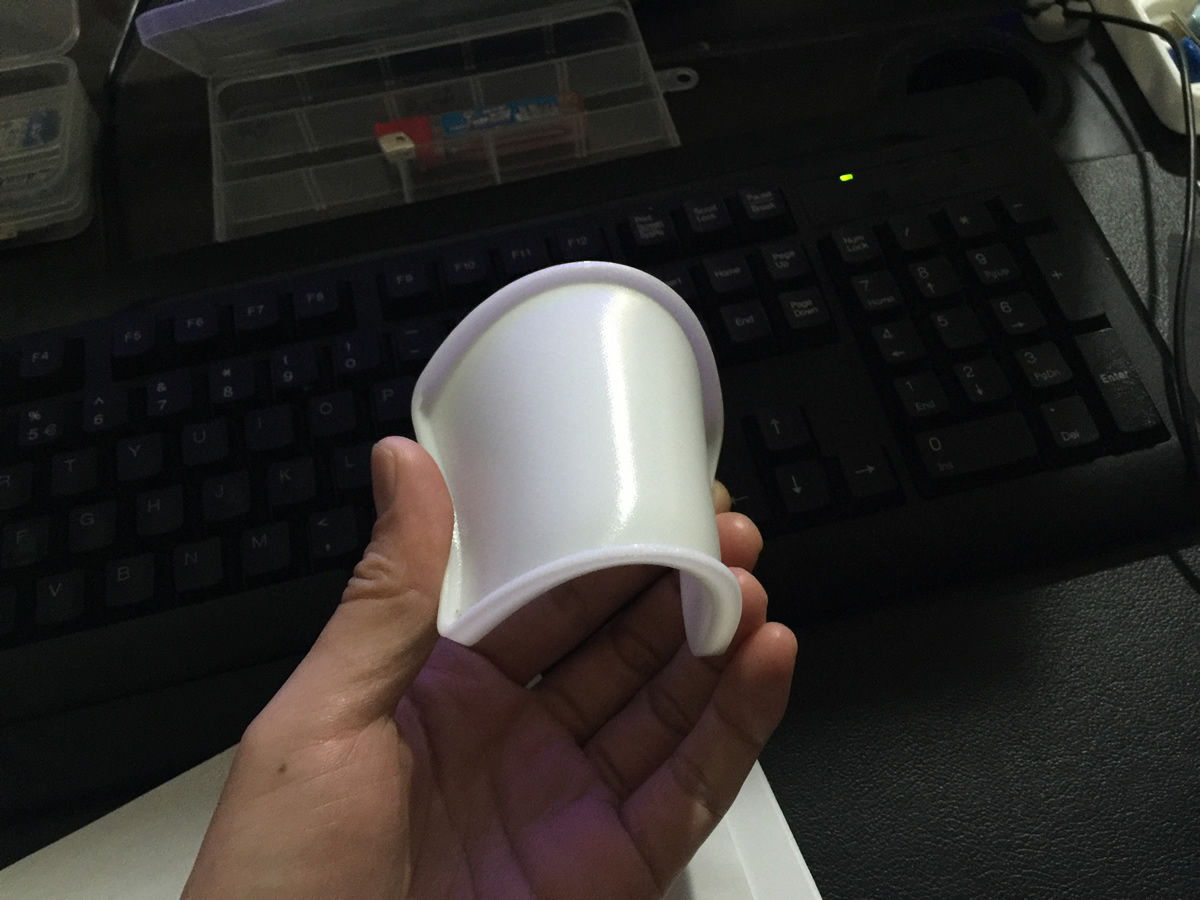

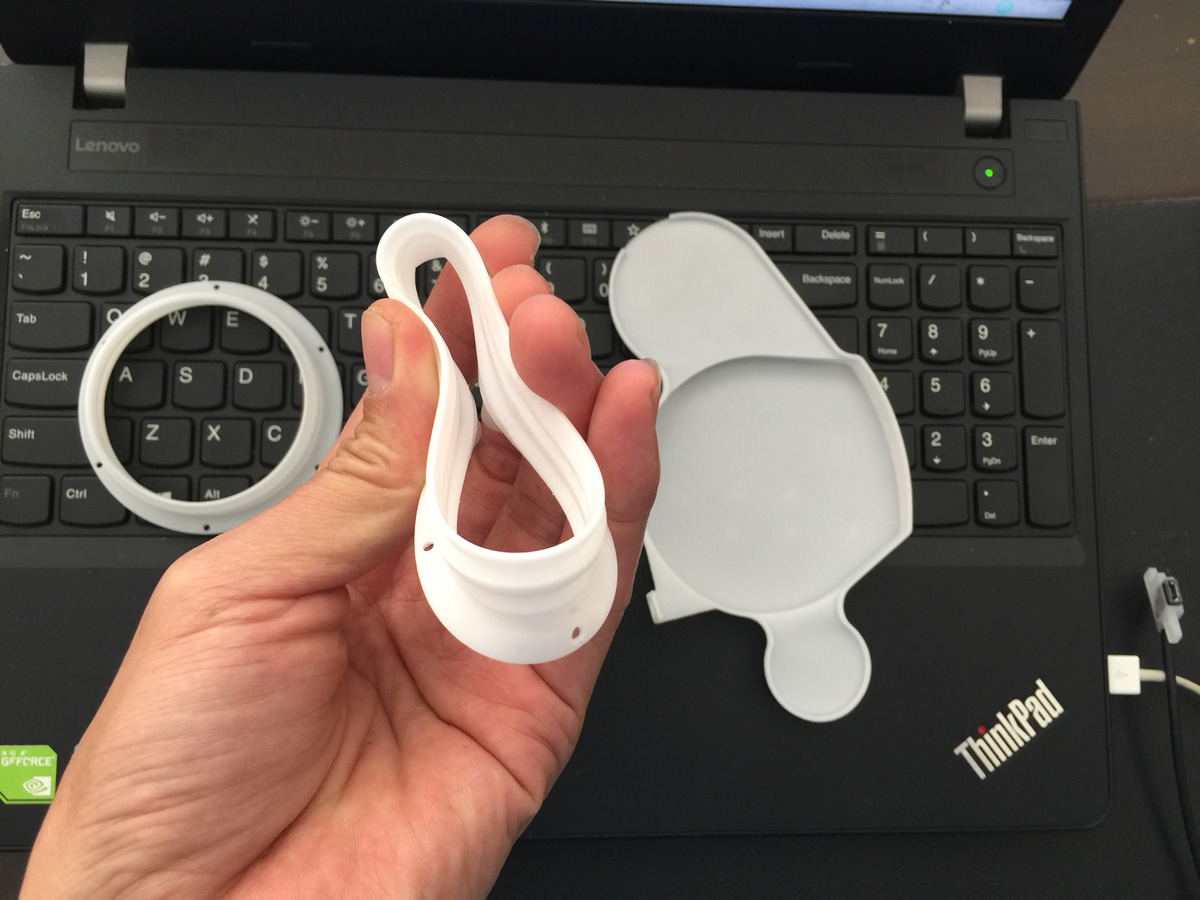

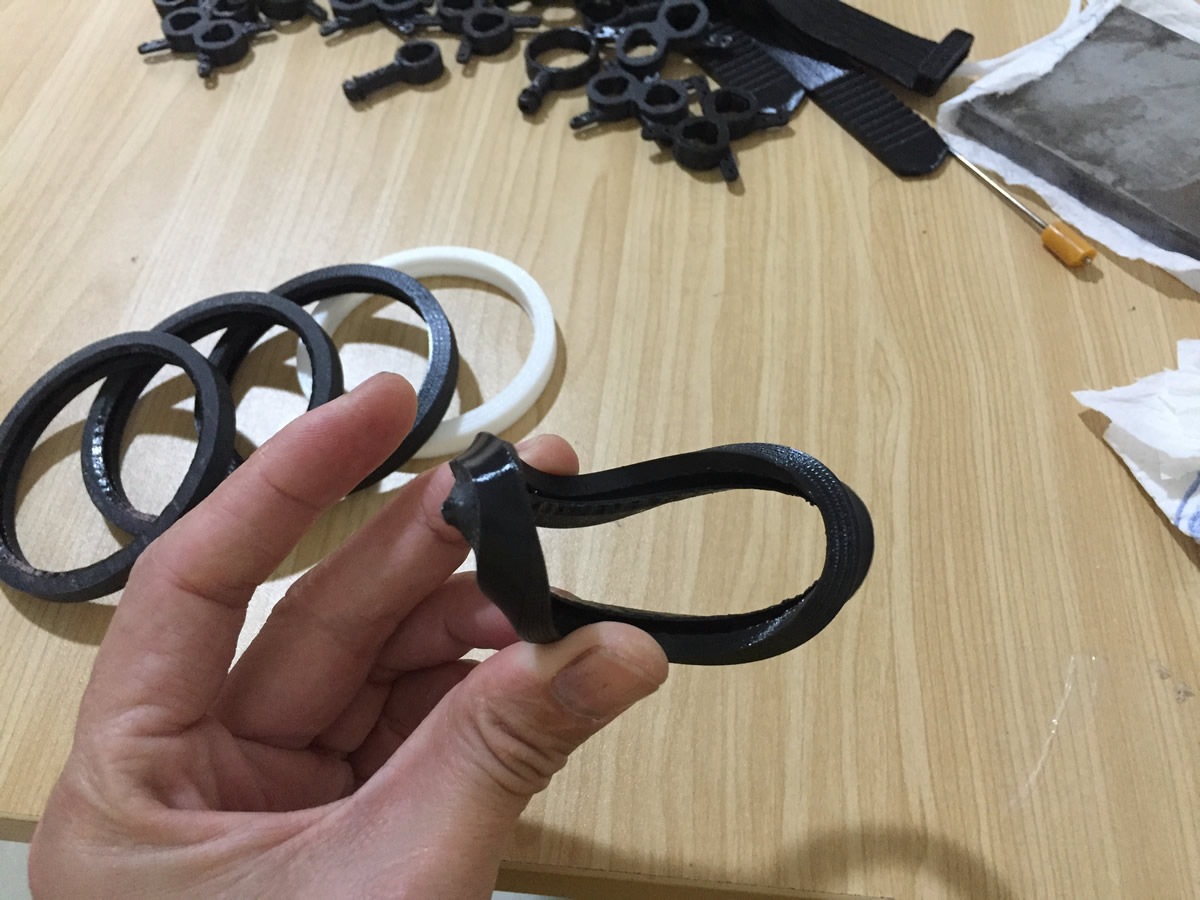

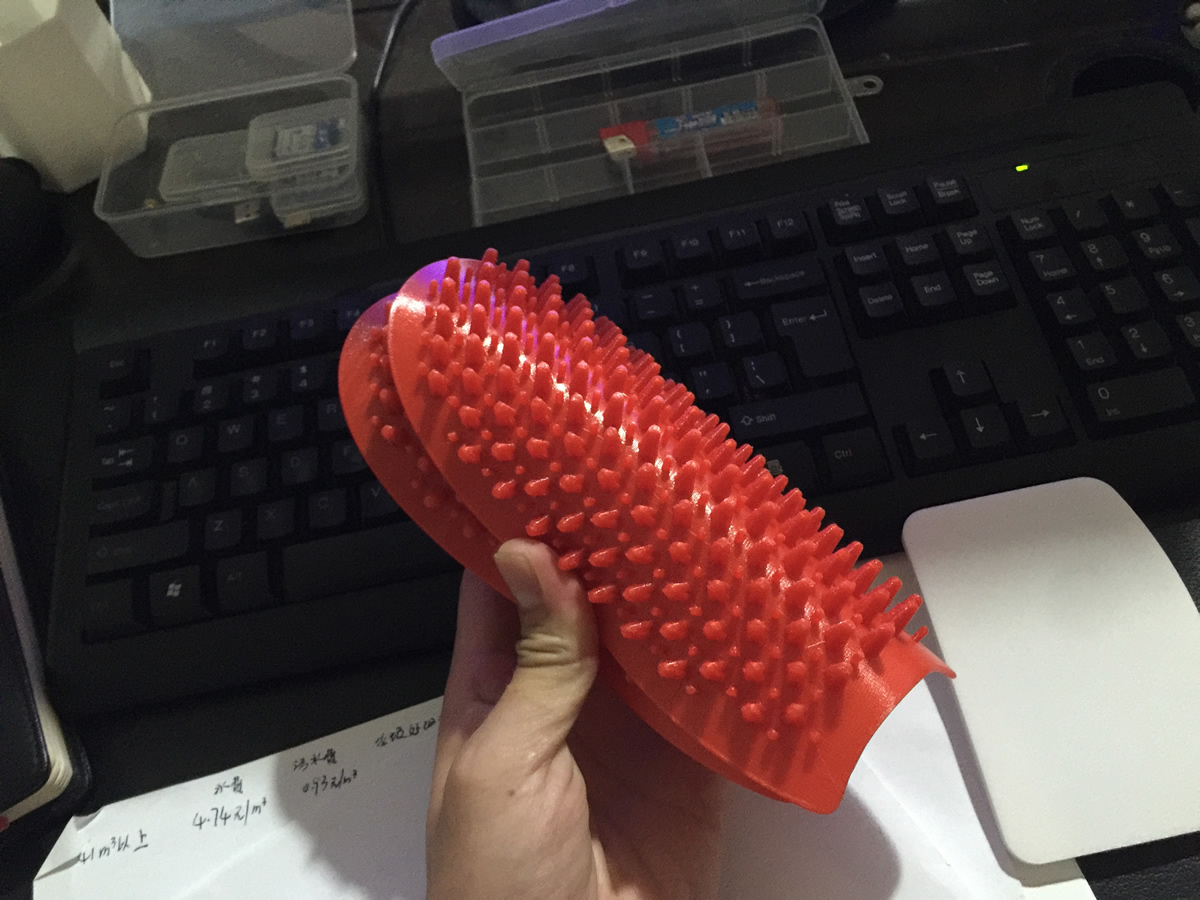

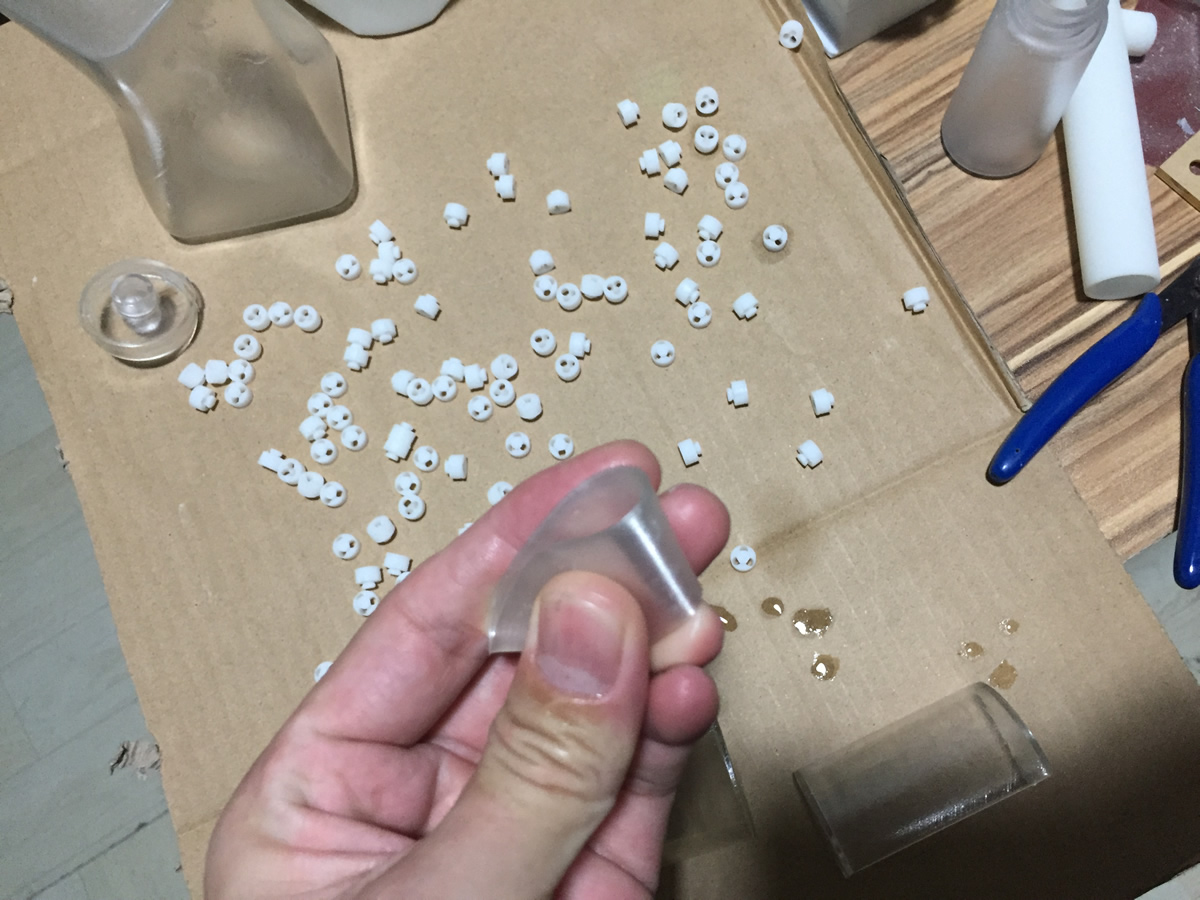

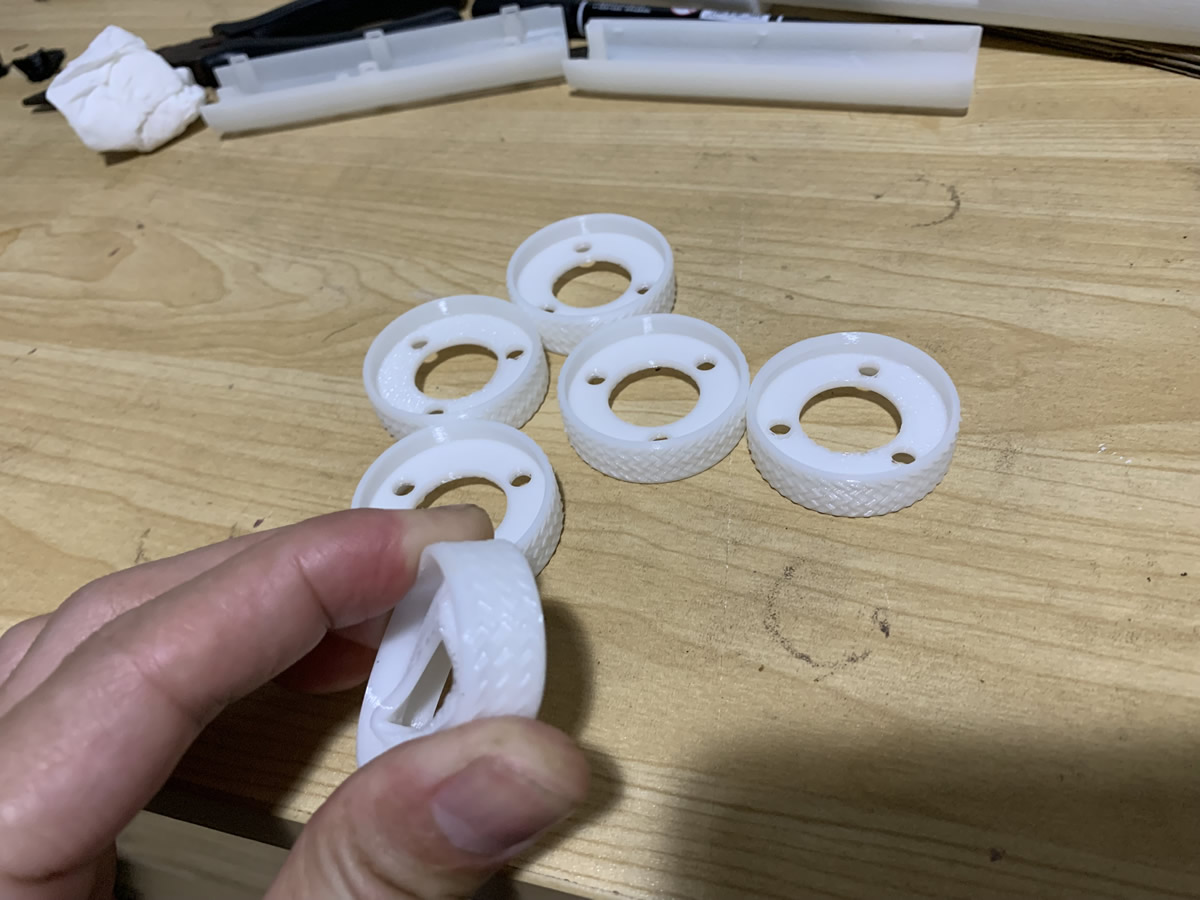

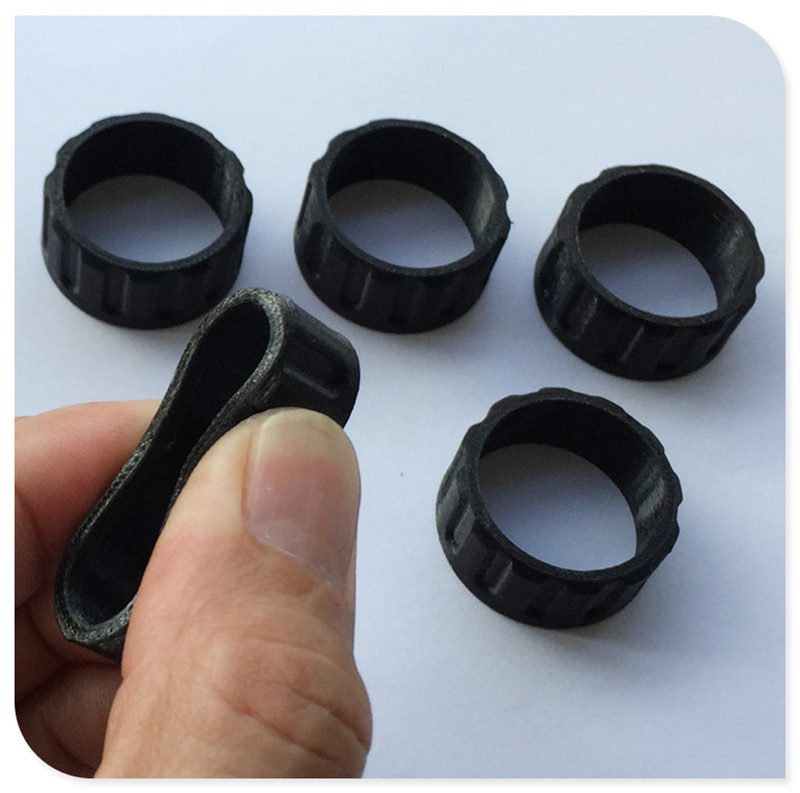

TPU soft rubber products rapid prototyping

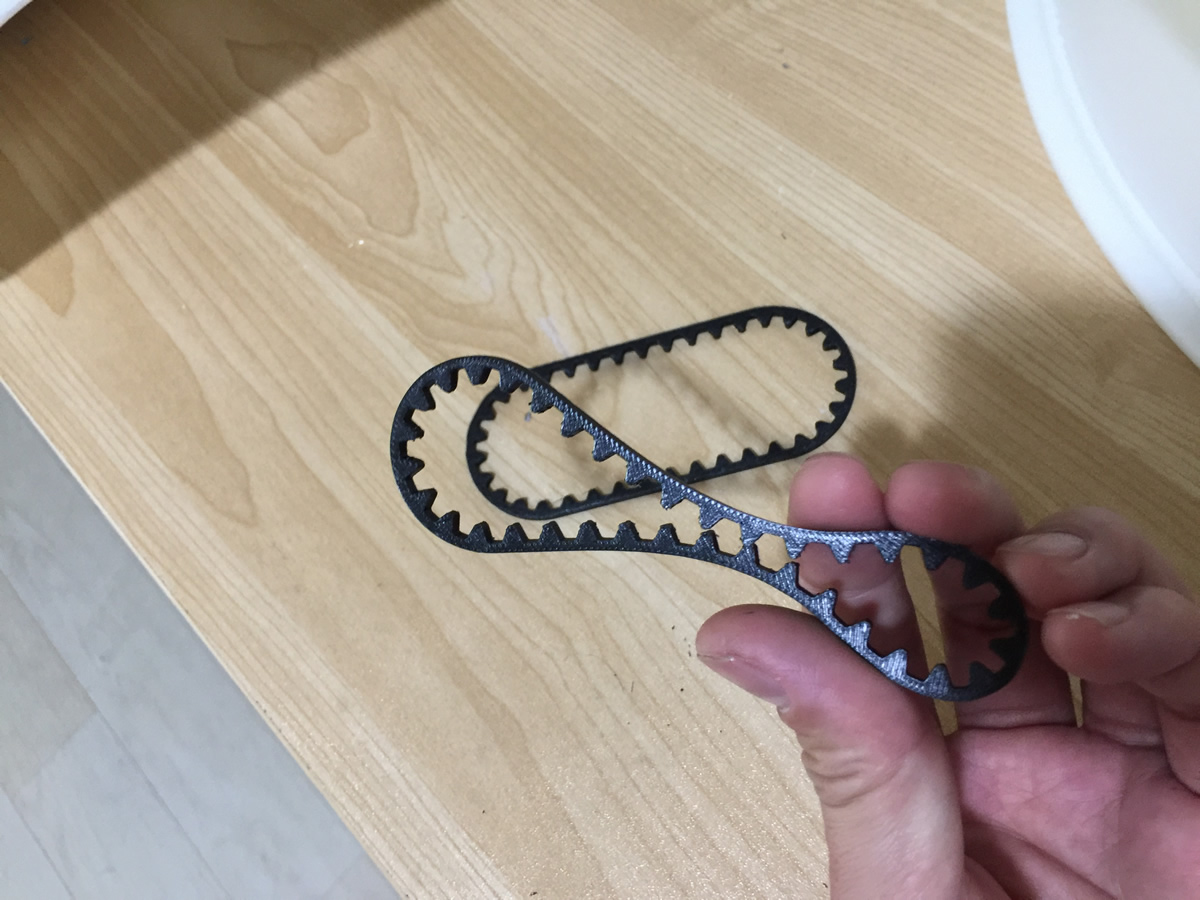

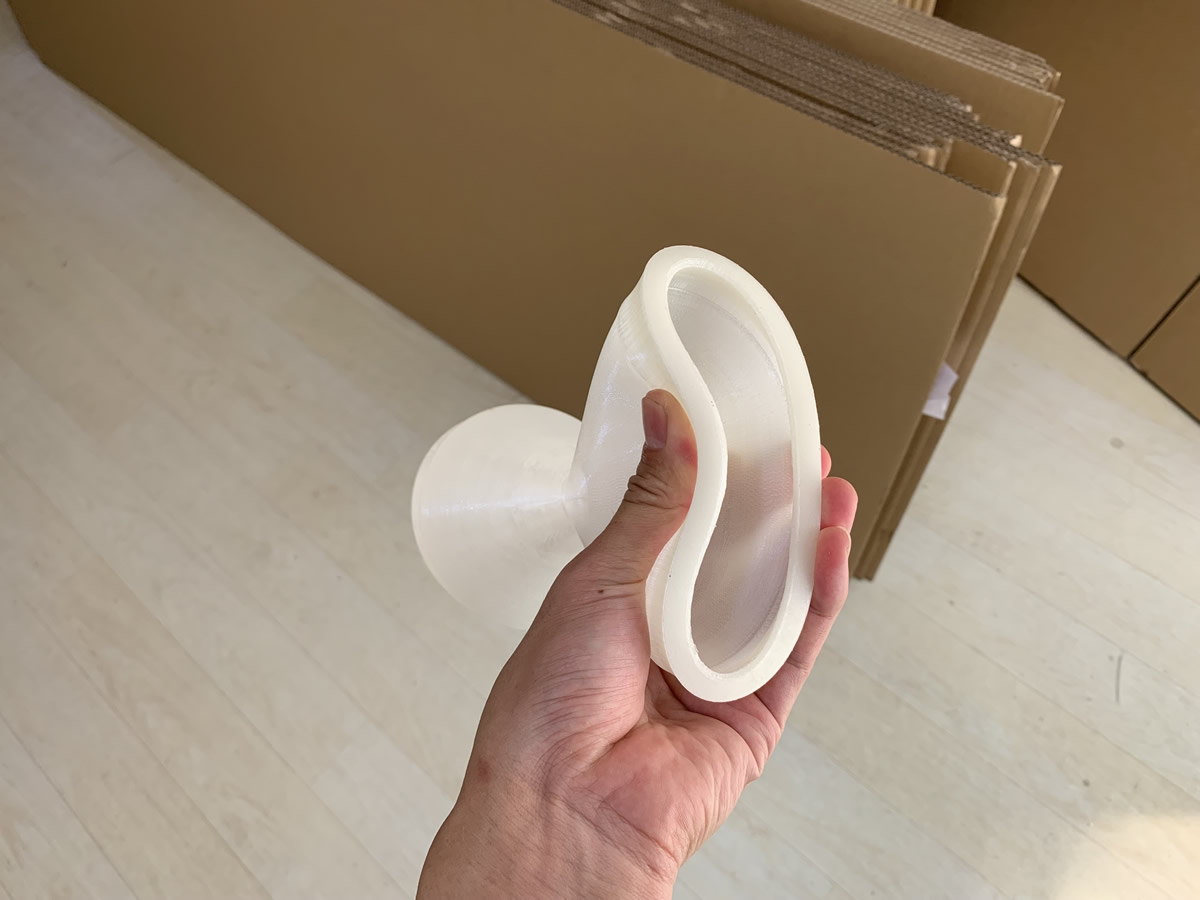

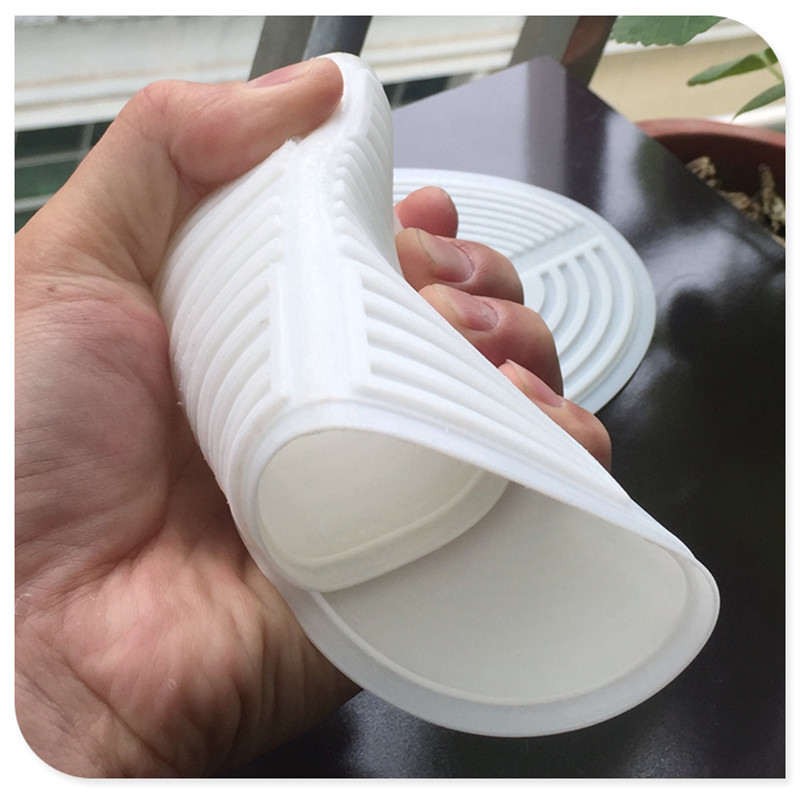

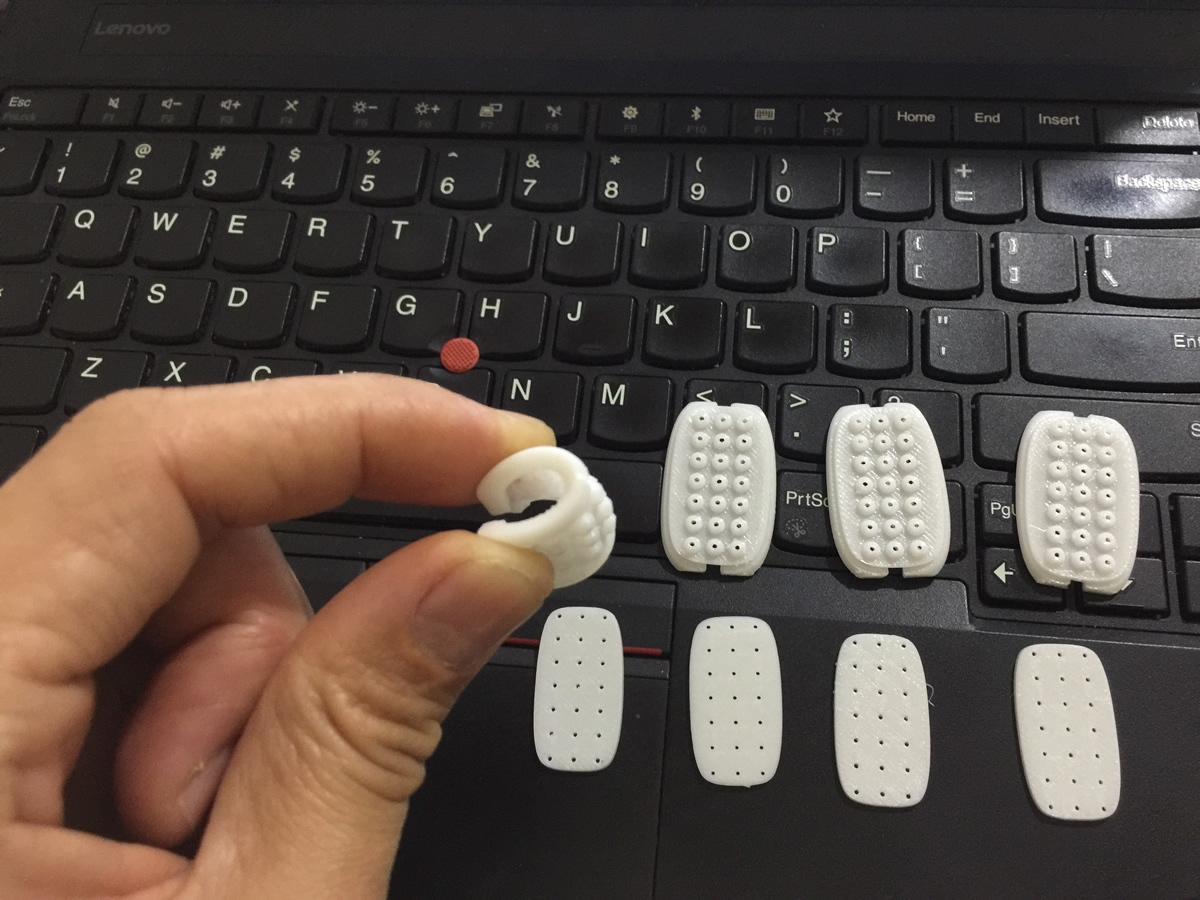

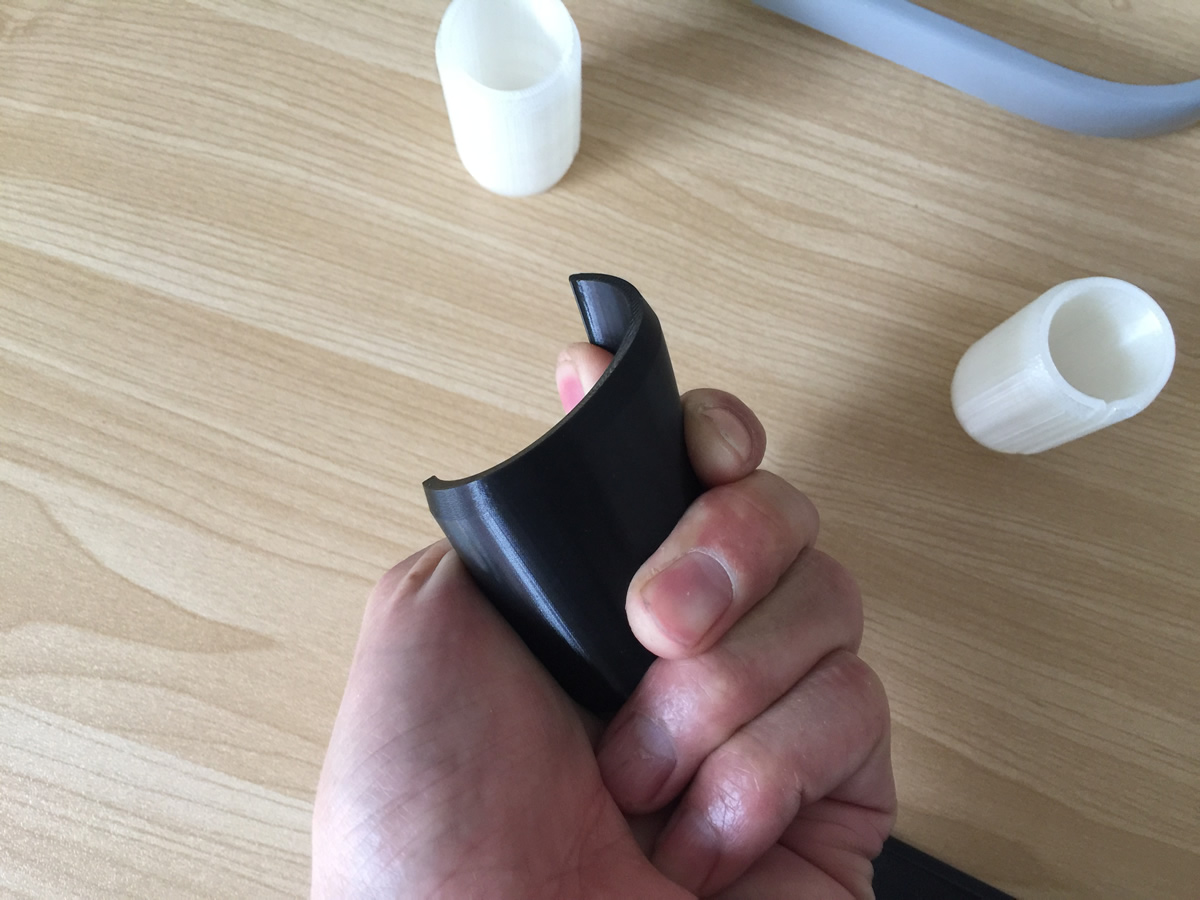

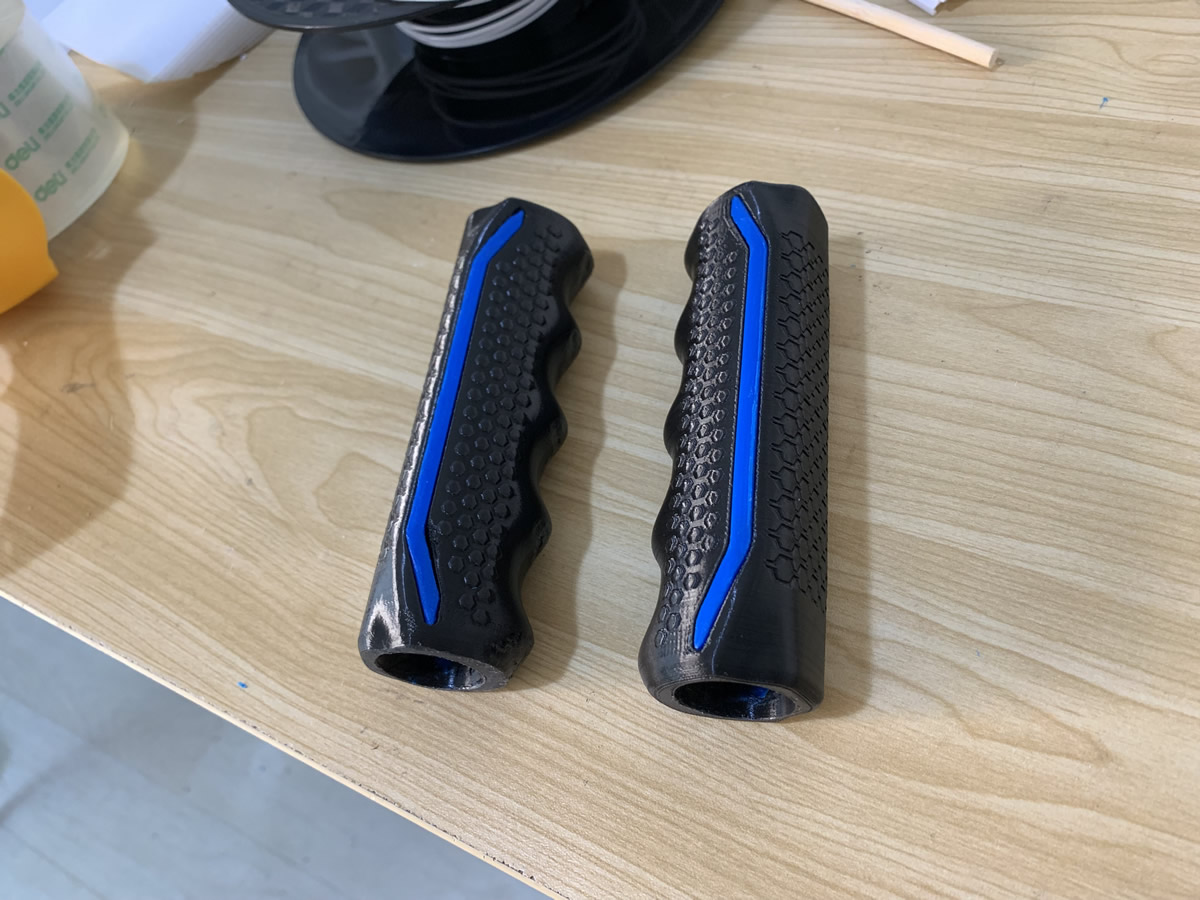

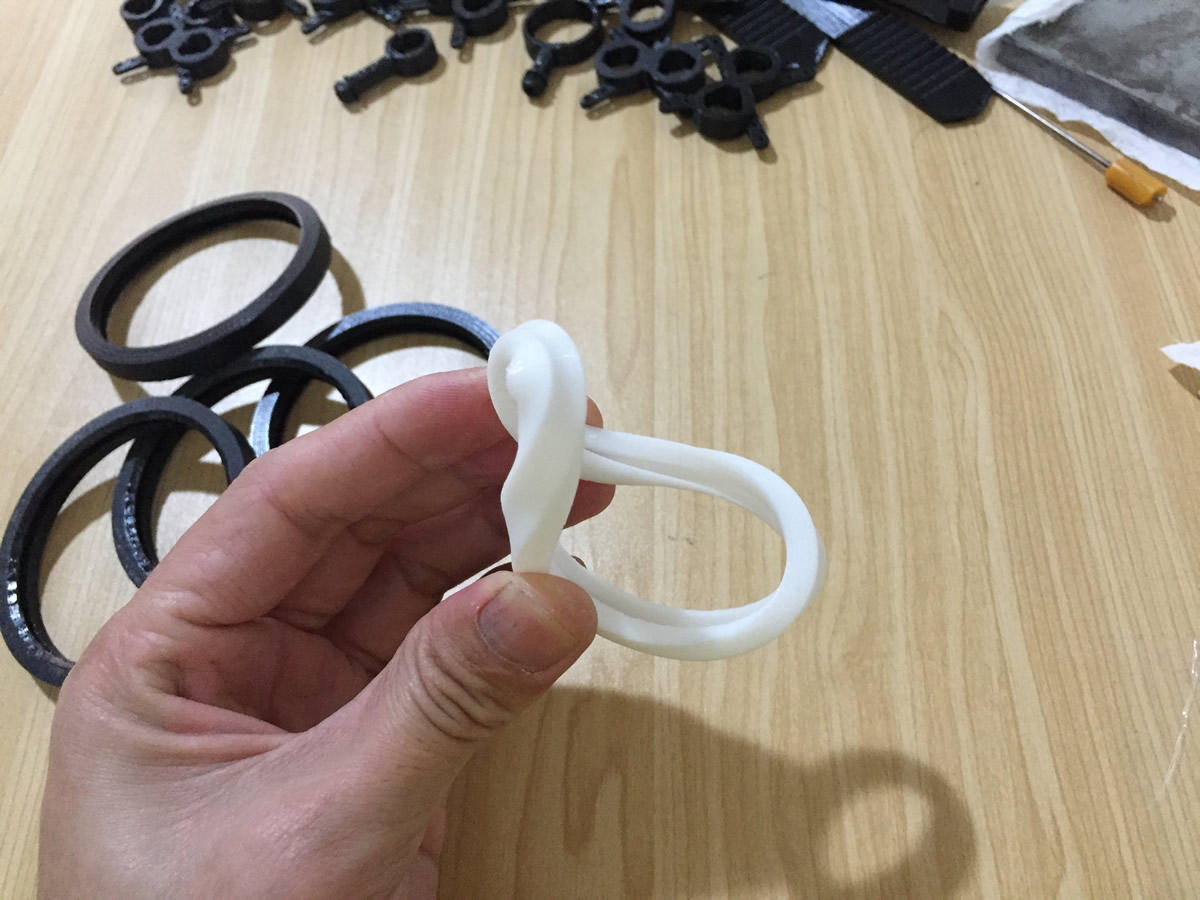

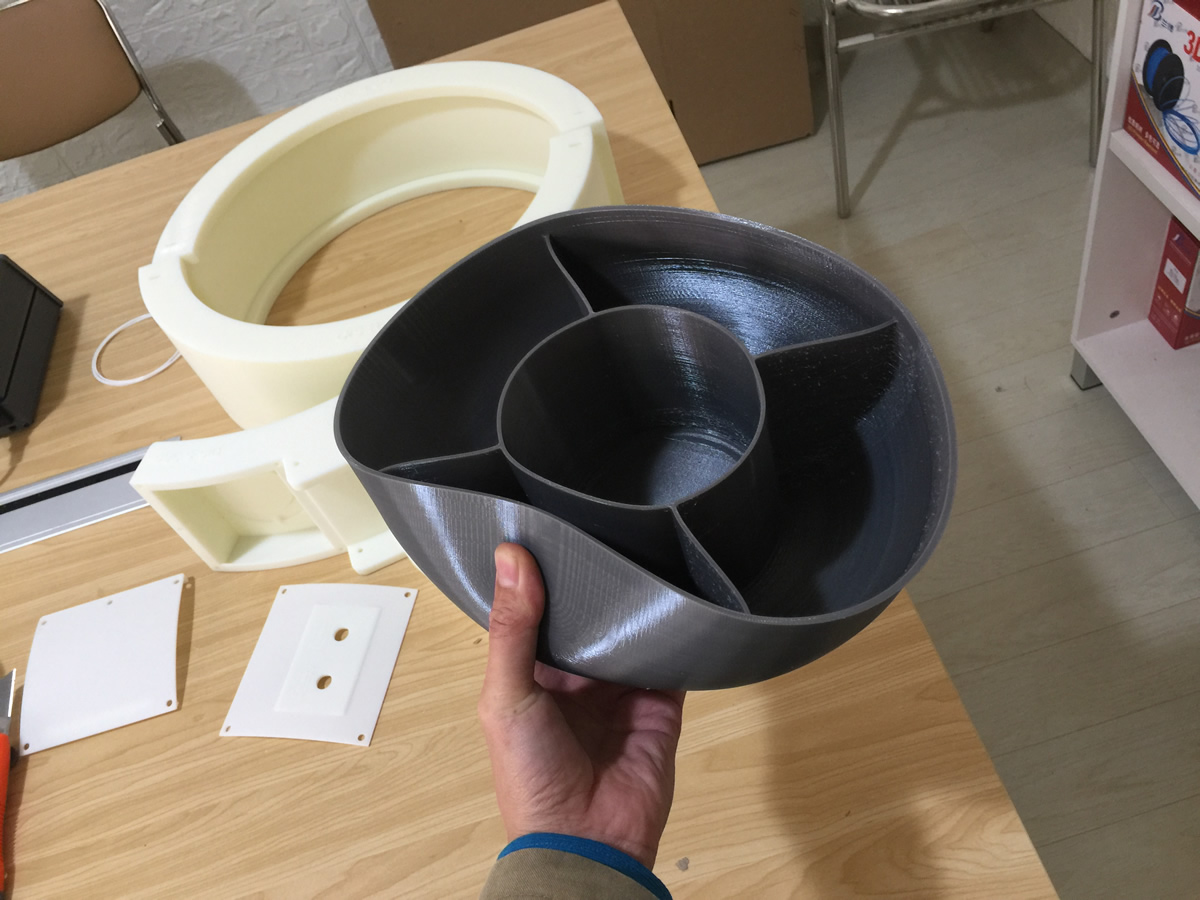

TPU材料制作的软质产品具有高防水性透湿性、防风、防寒、抗菌、防霉、保暖、抗紫外线以及能量释放等许多优异的功能。 Soft products made of TPU materials have many excellent functions such as high water repellency, moisture resistance, wind resistance, cold resistance, antibacterial, mildew proof, warmth, UV resistance and energy release.
TPU的材料特性Material properties of TPU:
（聚氨酯）TPU是Thermoplastic Urethane的简称，中文名称为热塑性聚氨酯弹性体，TPU是由二苯甲烷二异氰酸酯（MDI）、甲苯二异氰酸酯（TDI）和大分子多元醇、扩链剂共同反应聚合而成的高分子材料。它的分子结构是由二苯甲烷二异氰酸酯（MDI）、甲苯二异氰酸酯（TDI）和扩链剂反应得到的刚性嵌段以及二苯甲烷二异氰酸酯（MDI）、甲苯二异氰酸酯（TDI）和大分子多元醇反应得到的柔性链段交替构成的。
(Polyurethane) TPU is the abbreviation of Thermoplastic Urethane. The Chinese name is thermoplastic polyurethane elastomer. TPU is formed by the reaction of diphenylmethane diisocyanate (MDI), toluene diisocyanate (TDI), macromolecular polyol and chain extender. Polymer material. Its molecular structure is a rigid block obtained by the reaction of diphenylmethane diisocyanate (MDI), toluene diisocyanate (TDI) and a chain extender, as well as diphenylmethane diisocyanate (MDI), toluene diisocyanate (TDI) and macromolecules. The flexible segments obtained by the polyol reaction are alternately formed.
TPU具有卓越的高张力、高拉力、强韧和耐老化的特性，是一种成熟的环保材料。
TPU is a mature and environmentally friendly material with excellent high tension, high tensile strength, toughness and aging resistance.
目前，TPU已广泛应用与医疗卫生、电子电器、工业及体育等方面，其具有其它塑料材料所无法比拟的强度高、韧性好、耐磨、耐寒、耐油、耐水、耐老化、耐气候等特性，同时他具有高防水性透湿性、防风、防寒、抗菌、防霉、保暖、抗紫外线以及能量释放等许多优异的功能。
At present, TPU has been widely used in medical and health, electronic appliances, industry and sports. It has the characteristics of high strength, good toughness, wear resistance, cold resistance, oil resistance, water resistance, aging resistance and weather resistance which are unmatched by other plastic materials. At the same time, he has many excellent functions such as high water repellency, moisture resistance, cold resistance, antibacterial, mildew proof, warmth, UV resistance and energy release.
打印要求和打印参数Print request and print parameters:
TPU目前适合FDM技术3D打印方式，打印效果良好，选用的TPU材料硬度值必须是85A以上，打印丝越硬其打印效果越佳（打印丝容易被挤出,流量稳定），需要注意的是，打印挤出方式以近程挤出为主，远程挤出机打印TPU的机率不高，且打印速度不要超过20，速度越慢越好，否则出料跟不上进料打印丝会弯曲溢出，打印温度的控制一般在190至198度之间为佳，因为是软质材料，TPU材料不易翘边，可以不需要喷头冷却风扇，下面是打印TPU材料的基本参数供参考。
TPU is currently suitable for FDM technology 3D printing method, the printing effect is good, the hardness value of the selected TPU material must be 85A or more, the harder the printing silk is, the better the printing effect is (the printing silk is easy to be extruded, the flow rate is stable), it should be noted that The printing extrusion method is mainly for short-range extrusion. The probability of printing the TPU by the remote extruder is not high, and the printing speed should not exceed 20, the slower the better, otherwise the output will not keep up with the feeding printing wire and will overflow and print. The temperature control is generally between 190 and 198 degrees. Because it is a soft material, the TPU material is not easy to warp. It can be used without a nozzle cooling fan. The following are the basic parameters for printing TPU materials for reference.
TPU filament diameter：1.75mm
Nozzle diameter：0.4mm
Extruder：Short-range extruder
Bottom print speed：5-10
print speed：10-18
Layer thickness：0.15-0.2
